Nominal Size：
NPS1/2''~12''（DN15～300）
Pressure Rating:
Class 150~600(PN20~100)
Product Name：Floating Ball
Nominal Size：
NPS1/2''~12''（DN15～300）
Pressure Rating:
Class 150~600(PN20~100)
Basic Material:
ASTM A105, A350 LF2, A182 F304,
A182 F316, A182 F6A
A182 F51, A182 F53,
A564 630(17-4PH), Monel, Alloy
Coatings:
*Nitridation
*ENP
*Chrome Plating
*Tungsten Carbide
*Spray Stellite
*Spray Nickel Alloy
*Spray Cobalt Alloy Etc.
|
|

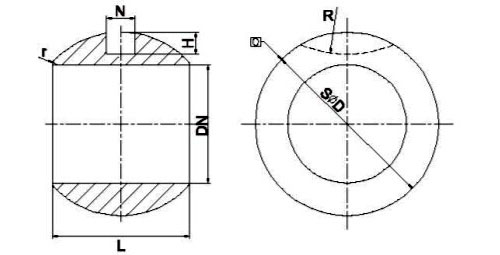

Pressure |
NPS |
DN |
D |
L |
r |
N |
R |
H |
○ |
|
MIN |
150 |
1/2'' |
15 |
26.5 |
22 |
6 |
12.5 |
6 |
1 |
0.01 |
|
MAX |
600 |
12 |
298 |
465 |
352 |
38 |
85 |
40 |
5 |
0.1 |
